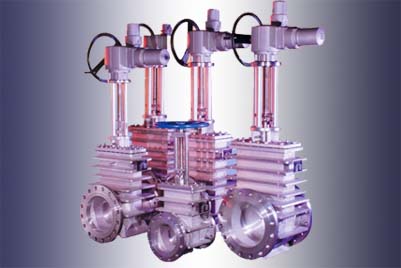

GUICHON VALVES manufacture gate valves in welded construction, mainly for in-line on/off service with liquids, gases or powdery medium.
Their double disc arrangement with ball and socket ensure very good tightness performance and their full bore construction guarantees maximum flow. For higher working pressures, the parallel seated type - free expansion discs - offers optimum operation.
|
| |
|
| |
Various optional arrangements are available :
- double spindle tightness with bellows and packing (type 709)
- special seat for complete flow out of viscous mediums on vertical lines (type 702)
- heating or cooling jacket
- extended stem for cryogenic service (types 704 and 707)
- bonnet with cooling ribs (type 705)
- hard faced seating surfaces
Operation
- handwheel, with manual gear if required
- pneumatic, electric
- hydraulic actuator
Materials
These valves can be manufactured in a wide choice of stainless steels and special alloys available for fabricated (welded) construction.
Range
Size 3/8” to 48” 150 to 2,500 Lbs
DN 10 to DN 1200 PN 10 to 400 |
|
 |
Product |
| |
 |
Double disc gate valve
Type : 700, 720, 750
- Fabricated construction
- Size 1/2 in. to 36 in., class 150 to 2,500
- Stainless and duplex steels, nickel alloys and special alloys
|
| |
 |
Polymer gate valve
Type : 702, 722, 752
- Fabricated construction
- DN 15 to 250, PN 10 to 63, stainless steel
- Installation on vertical line
- Upstream tightness
- Fully jacketed
|
| |
 |
Parallel seated gate valve
Type : 706, 726, 756
- Fabricated construction
- Size 1 in. to 16 in., class 150 to 600 Lbs
- Stainless and duplex steels, nickel alloys, special alloys
|
| |
 |
Bellow sealed gate valve
Type : 709, 729, 759
- Fabricated construction
- Size 1/2 in. to 12 in., class 150 to 300lbs
- Stainless and duplex steels, nickel alloys, special alloys
|
|
